JPath

JSONPath is a query language for JSON, often shortened to "JPath". Aggregations.io uses a simplified variation of JPath for filtering events and addressing individual properties.

Addressing properties using JPath Notation

A JPath expression specifies a path to an element, or a set of elements, in a JSON structure. Paths can be specified with three notation types:

@.device.platform

@['device']['plaftorm']

@['device'].platform

For JSON properties that include spaces or other special characters, use bracket notation. See Complex Payloads for more details.

JPath Filters

Operators

Operator	Description	Example
==	Equal to. String values must be enclosed in single quotes (not double quotes)	`@.app.version == 2.0`
!=	Not equal to. String values must be enclosed in single quotes	`@.app.version != 2.0`
>	Greater than	`@.duration > 60`
>=	Greater than or equal to	`@.app.buildNum >= 4102`
/<	Less than	`@.app.buildNum < 3000`
<=	Less than or equal to	`@.app.version <= 1.9`
`LIKE`	String similarity comparison using `%` as wildcard.	`@.eventName LIKE 'app%'`
`ILIKE`	Case-Insensitive String similarity comparison, using `%` as wildcard.	`@.eventName ILIKE 'ApP%'`
=~	Matches an re2 regular expression, surrounded by `/` to denote start & end.	`@.color =~ /gr(a\|e)y/` Matches events where the color property is "grey" or "gray"
in	Checks if the value is equal to one of provided values	`@.eventName in ['appOpen', 'appClose']` see array rules below.
	Checks existence of a field	`@.error` Matches events who have an `error` field
!	Used to negate a filter	`!(@.color)` Matches items that do not have the color property.
&&	Logical `AND` - used to combine multiple filter expressions	`@.app.version==2.0 && @.device.platform == 'ios'`
\|\|	Logical `OR`, used to combine multiple filter expressions	`@.eventName == 'AppClose' \|\| @.eventNamne == 'AppBackground'`
`.length`	Used with array properties to compare array length	`@.player.weapons.length > 0`

Values

Value type	Description
String	String literals, ensure they are enclosed in single-quotes.
Numeric	Number literals, `0` or `0.1` or `-12345678910112` etc... When a numeric literal is the value, an attempt will be made to cast the field to a number (float), if that cast fails, the event is disregarded.
Boolean	`true` or `false`. When a boolean literal is the value, the field specified will be cast to a boolean. If that cast fails, the event is disregarded.
Null	`null` literals can be checked to confirm that a field exists and the value is explicitly `null`. If the field doesnt exist, it will not be included.
Array	Array literals can be used with the `in` operator. Arrays of mixed types (strings, numbers) will all be considered strings. For example `@.value in ['abc', 123]` will be treated like `@.value in ['abc','123']`.
Regex	Regex literals will be treated like regex, experimental. Uses Google's re2 syntax.

Need something else? Contact us

Complex Payloads

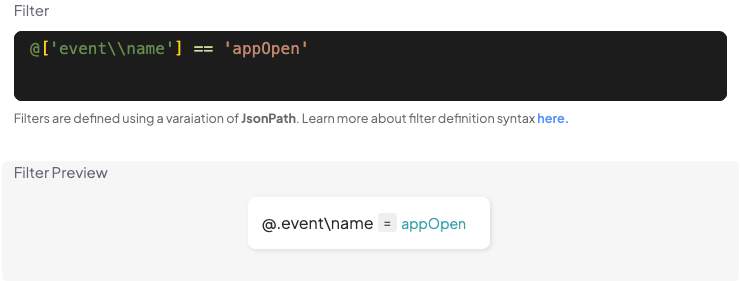

Complex payloads are those that have spaces and other special characters in JSON property keys. To ensure proper JPath syntax, use bracket notation and/or \ as an escape character.

For spaces (and several other special characters), simply using bracket notation will work.

Certain special characters will require \ as an escape character, such as single quotes ('), double quotes (") and back-slash ().
